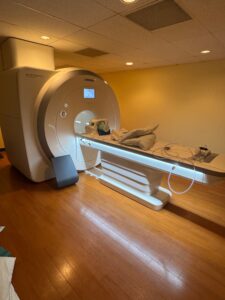

2022 SIEMENS 1.5T AMIRA-MXR171312

TECHNICAL SPECS

MAGNET SYSTEM

FIELD STRENGTH 1.5 TESLA

BORE SIZE 60 CM / 1.97 FT

MAGNET LENGTH 155 CM / 5.09 FT

HELIUM CONSUMPTION ZERO HELIUM BOIL-OFF TECHNOLOGY

SHIMMING PASSIVE AND ACTIVE

GRADIENT STRENGTH XF GRADIENTS (33 MT/M @125 T/M/S)

RF TECHNOLOGY TIM [96 X 24], [96 X 16]

POWER CONSUMPTION ECO-POWER TECHNOLOGY,

OPTIONAL: ECO-CHILLER

SITING AND INSTALLATION

SYSTEM LENGTH 171 CM / 5.61 FT

SYSTEM WEIGHT (IN OPERATION) 4.68 TONS / 10,317.63 LB

POWER REQUIREMENT 70 KVA CONNECTION

MINIMUM ROOM SIZE2 28 M2 / 302 SQ FT

SYSTEM DESIGN

– SHORT AND OPEN APPEARANCE (171 CM SYSTEM LENGTH AND 60 CM BORE DESIGN) TO

REDUCE PATIENT ANXIETY AND CLAUSTROPHOBIA

– WHOLE-BODY SUPERCONDUCTIVE ZERO HELIUM BOIL-OFF 1.5T MAGNET

– ACTIVELY SHIELDED WATER-COOLED SIEMENS GRADIENT SYSTEM FOR MAXIMUM

PERFORMANCE

– TRUEFORM MAGNET DESIGN.

TIM 4G (TOTAL IMAGING MATRIX IN THE 4TH GENERATION) FOR EXCELLENT IMAGE QUALITY AND

SPEED

– DIRECTRX TECHNOLOGY ENABLING THE DIGITAL-OUT DESIGN

– DUAL-DENSITY SIGNAL TRANSFER TECHNOLOGY

PUSH-BUTTON EXAMS WITH GO TECHNOLOGIES

• DOTGO/ MYEXAM COMPANION

• RECON&GO

• MR VIEW&GO

• TIM APPLICATION SUITE ALLOWING EXCELLENT HEAD-TO-TOE IMAGING FOR

• NEURO

• ANGIO

• CARDIAC

• BODY

• ONCO

• BREAST

• ORTHO

• PEDIATRIC

• SCIENTIFIC

ACTUAL SYSTEM SPECS

TIM 96X16

WHOLE BODY SUPERCONDUCTIVE ZERO HELIUM BOIL OFF 1.5T MAGNET

TIM APPLICATION SUITE

1D/2D PACE

BLADE

PHOENIX

INLINE DIFFUSION

MDDW

CISS

DESS

TGSE

SEGMENTED TOF

VARIABLE FA HASTE

IMAGE FUSION

OFFLINE COMPOSING

MR GENERAL ENGINE

BRAIN DOT ENGINE

DOTGO ROUTINE PACKAGE

QUITE SUITE

TIM PLANNING SUITE

 SYNGO TIM CT FAST VIEW

ADVANCED DIFFUSION

WARP & ADVANCED WARP

INLINE COMPOSING

SYNGO EXPERT

SWI

MAPIT SYNGO

FLOW QUANTIFICATION

SYNGO MR SPECTRO

SINGLE VOXEL SPECTROSCOPY

COILS

SHOULDER SHAPE 16

FOOT ANKLE 16

ULTRA FLEX LARGE  18

ULTRA FLEX SMALL  18

EXTREMITY 18 FLARE

HEAD/NECK 16 DIRECT CONNECT

 BODY 13

SPINE 18 DIRECT CONNECT

AVAILABLE OCTOBER

LOCATED IN DE

All Nationwide Imaging systems are sold “as is,” but we also offer Platinum Certified refurbishment services as a customer option. Platinum Certified systems include a one-year warranty. Platinum Certified systems are available for delivery within the US and Canada only.
